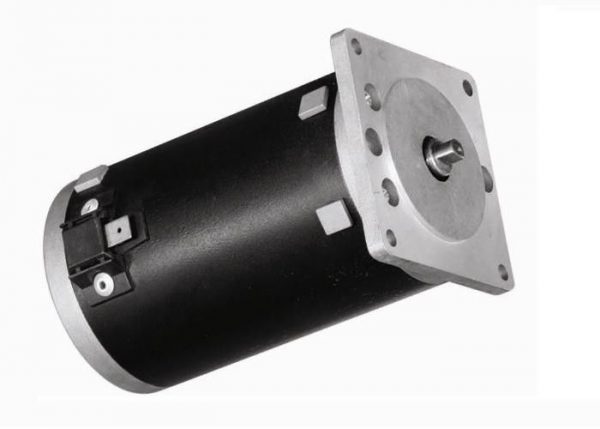

73ZYT-Brushed DC Motor
Features:
- Frame size at 73mm having a compact design.
- High-quality copper windings and dynamically balanced armatures to ensure the high efficiency.B
- NMB or SKF sealed ball bearings and rare earth magnets to extend the life-cycle with durability.
Specifications:
| Model | Voltage
(V) |
No Load Current
(A) |
No Load
Speed (rpm) |
Torque
(Nm) |
Rated Current
(A) |
Rated Speed
(rpm) |
Rated Power
(W) |
Length
(mm) |
| SH-73ZYT01 | 12 | 3 | 4400 | 0.3 | 15 | 3700 | 116 | 145 |
| SH-73ZYT02 | 12 | 2.5 | 4000 | 0.4 | 1.5 | 3200 | 134 | 155 |
| SH-73ZYT03 | 12 | 2 | 3600 | 0.5 | 18 | 3000 | 157 | 165 |
| SH-73ZYT05 | 24 | 2 | 3600 | 0.5 | 10 | 3000 | 157 | 165 |
Applications:
Our 73mm brushed DC motors are widely applied to powered chairs, X-ray machines and door openers.
