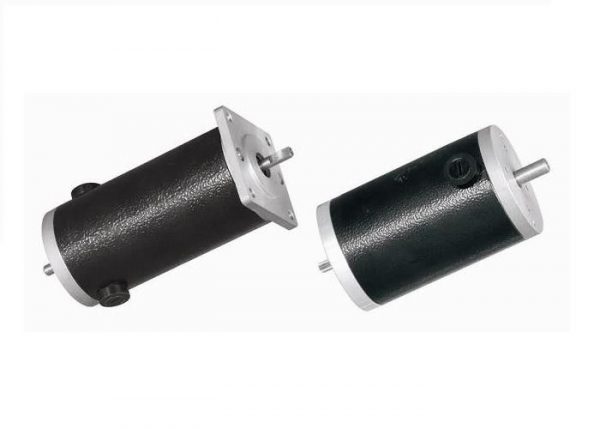

60ZYT-Brushed DC Motor
Features:
- Rugged steel housing with black painting to survive a long service lifespan cycle.
- Both front and rear end bells can be customized to fit your final applications.
- Quality motor components and dedicated workmanship to have improved our motor performance.
- The voltage range of this series is from 24VDC to 90VDC.
Specifications:
| Model | Voltage
(V) |
No Load Current
(A) |
No Load Speed
(rpm) |
Torque
(Nm) |
Rated Current
(A) |
Rated Speed
(rpm) |
Rated Power
(W) |

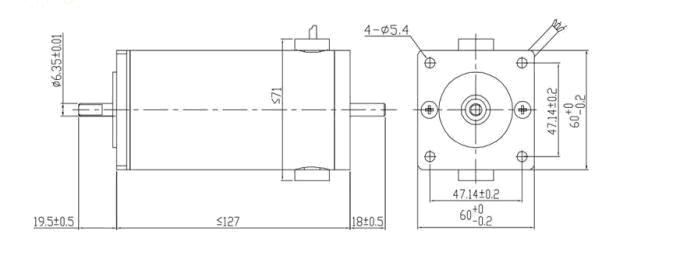

Length
(mm) |
| SH-60ZYT09 | 36 | 0.3 | 4500 | 0.3 | 3.3 | 3900 | 161 | 120 |
| SH-60ZYT10 | 60 | 0.3 | 5000 | 0.35 | 3.3 | 4400 | 161 | 127 |
| SH-60ZYT15 | 90 | 0.15 | 3470 | 0.25 | 1.3 | 2784 | 73 | 100 |
| SH-60ZYT30 | 24 | 0.6 | 4000 | 0.4 | 7 | 3000 | 126 | 100 |
Caution 1: Peak torque parameter is only for reference. Long-term use close to or under this condition will lead to motor damage.
Note: The aboved are just representative products. Derived products can be produced according to customer’s requirements.
Applications:

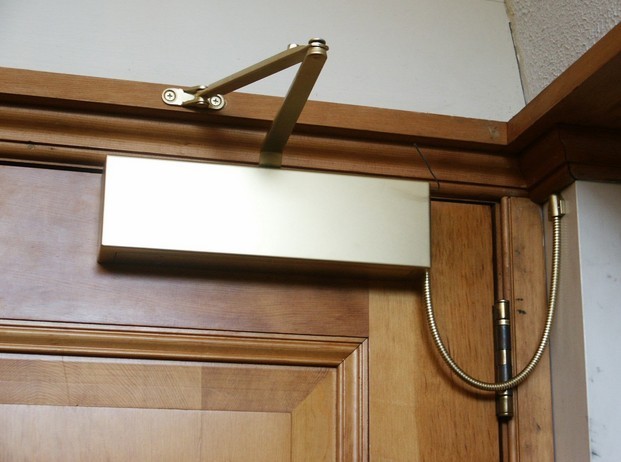

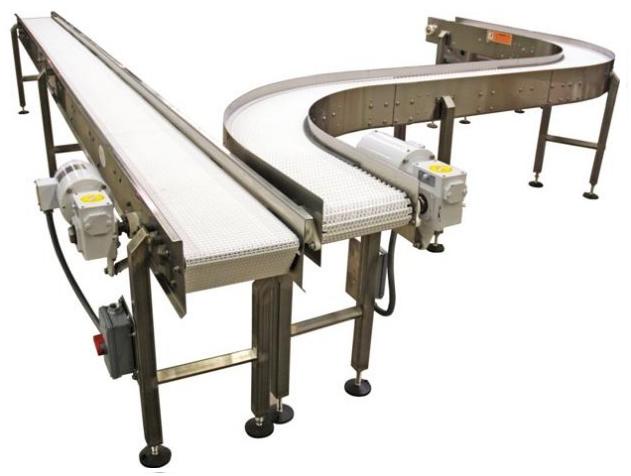

Our 60mm brushed DC motors are widely applied to battery-powered devices such as wheelchairs, power tools, conveyors and door openers.
