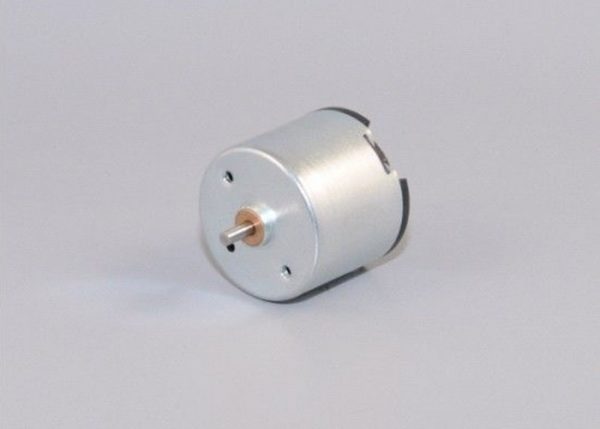

34ZYT-Brushed DC Motor
Features:
- 34mm series of micro brushed motors supports an operation at a broad range of power supply from 9VDC to 30VDC.
- The housing diameter is measured at 34.2mm and its mechanical tolerances are guaranteed by high-speed & high-precision punching machines.
- The housing and the front end bell are produced in the same single lot of punching to form them an integral whole, which improves a lot the motor quality due to a less involvement of manual labouring.
- Moreover, some other key motor components like sleeve bearings and ferrite magnets have been well selected in quality to prolong the motor life.
Specifications:
| Model | Rated Voltage (V) | Rated Current (A) | Rated Speed (rpm) | No-load Current (A) | No-load Speed (rpm) | Rated Torque (g.cm) |
| SH-34ZYT-19190 | 12 | ≤0.631 | 5985 | ≤0.156 | 7460 | 93.6 |
| SH-34ZYT-23150 | 12 | ≤0.829 | 8025 | ≤0.154 | 9515 | 87.2 |
| SH-34ZYT-15380 | 24 | ≤0.361 | 6250 | ≤0.075 | 7550 | 98.5 |
| SH-34ZYT-12580 | 24 | ≤0.236 | 4030 | ≤0.050 | 4885 | 76.3 |
Dimensions:
(Unit=mm)
Applications:
They are widely applied to portable vacuum cleaners, power brushes, brush roller and the head of gear box.
