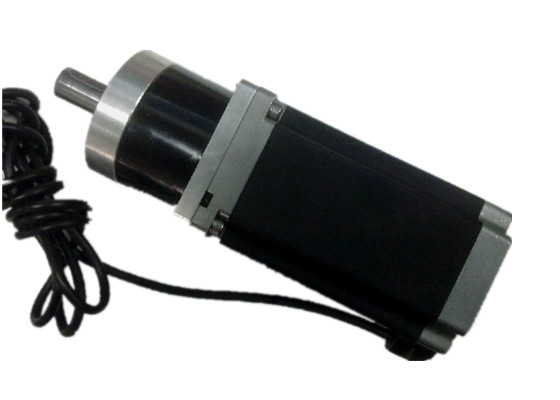

85HS Planet Geared Stepper Motor
| Certification: | TS16949/RoHS |
| Model Number: | 85HS-AG |
Payment & Shipping Terms
| Minimum Order Quantity: | 100pcs |
| Packaging Details: | Carton or negotiation |
| Delivery Time: | 45 working days after received your payment |
| Payment Terms: | negotiation, T/T |
| Supply Ability: | 10,000pcs/month |
Features
- Dynamically balanced rotor to offer a smooth operation.
- Sealed NMB or SKF ball bearings to extend the servicing life.
- Aluminium alloyed die cast endcaps and the housings with paint finish to endure the extreme working conditions.
- The hi-precision planetary gearbox to provide durable and quiet performance.
Specifications
| Model | Step Angle (°) | Motor Length (mm) | Rated Voltage (V) | Rated Current (A) | Phase Resistance (Ω) | Phase Inductance (mH) | Holding Torque (Kg.cm) | Lead Wire (NO.) | Gear Ratio |
| 85HS116-7504-002AG80 | 1.8 | 116 | 3.0 | 7.5 | 0.4 | 2.5 | 90 | 4 | 1:80 |
| 85HS155-5004-009AG36 | 1.8 | 155 | 4.0 | 5.0 | 0.8 | 10 | 110 | 4 | 1:36 |
Dimensions (Unit=mm)
Wiring Diagram
Applications
Our 85HS Planet geared motors are often seen in the applications such as dispensing, antenna positioning and semiconductor handling and testing.
