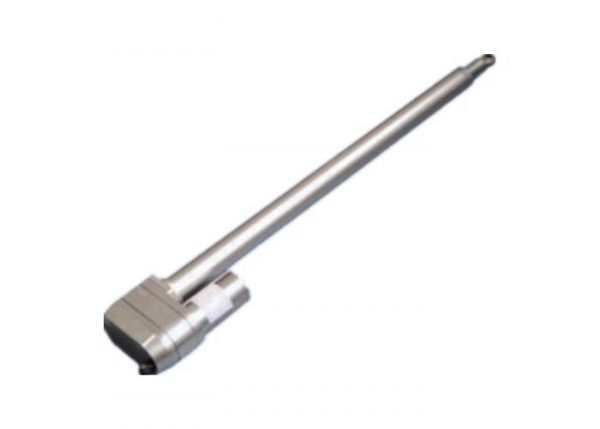

ZGZQ03-DC Linear Actuator
Features:
- Input voltage:12 or 24VDC.
- loading capacity 7000N
- Maximally 900mm in full stroke
- Maximally 12mm/s speed
- .Gear ratio:20:1 or 40:1
- Duty cycle:20%
Specifications:
| Model | ZGZQ03 |
| Input | 12/24VDC |
| Load Capacity | 7000N (Ball Screw) 4500N (ACME) |
| Speed Max | 12mm/s |
| Standard Stroke | 500 550 600 650 700 750 800 850 900 |
| Gear Ratio | 20:1 40:1 |
| Duty Cycle | 20% |
| Protection Level | IP54 |
| Operation Temperature | -26℃~+65℃ |
| ZGZQ03 | -24
Voltage 12 12VDC 24 24VDC |
-20
Ratio 20 20:1 40 40:1 |
-B
Screw Type A ACME B Ball Screw |
-05
Lead 05 5TPI |
-300
Stroke 300 300mm 900 900mm |
Applications:
The ZGZQ03-DC Linear Actuator perfect for the applications such as solar panel tracking, door and vent controllers and household floor washers.
