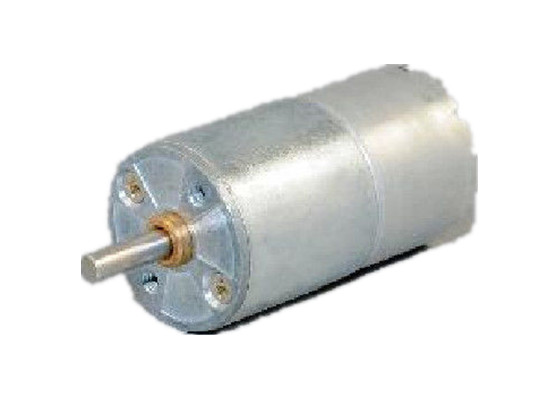

RF-310TA DC Gear Motor
Features:
- Low nominal voltage as low as either 3VDC or 5VDC.
- Dual ball bearings can be introduced for a more reliable performance.
- The housings with zinc paint can survive the extreme working conditions.
- More options in gear ratio is offered for your choice in application.
Specifications:
| Model | Voltage (VDC) | No Load | At Max. Efficiency | Stall | ||||||
| Operating Range | Nominal | Speed
(r/min) |
Current
(A) |
Speed
(r/min) |
Current
(A) |
Torque
(g.cm) |
Output Power
(W) |
Torque
(g,cm) |
Current
(A) |
|
| RF-310TA-12340 | 2.0~4.0 | 3.0 | 3540 | 0.030 | 2670 | 0.092 | 5.2 | 0.13 | 21.1 | 0.283 |
| RF-310TA-11400 | 4.0~6.0 | 5.0 | 4800 | 0.030 | 3764 | 0.109 | 7.9 | 0.29 | 36.6 | 0.39 |
| Rated Voltage
(VDC) |
Reduction Rate | 1/5.68 | 1/12.5 | 1/32 | 1/83.44 | 1/215 |
| 3V | Rated Torque (kg.cm) | 0.20 | 0.05 | 0.10 | 0.25 | 0.57 |
| Rated Speed (rpm) | 470.25 | 213.68 | 83.47 | 32.01 | 12.42 | |
| 5V | Rated Torque (kg.cm) | 0.04 | 0.07 | 0.17 | 0.39 | 0.91 |
| Rated Speed (rpm) | 662.68 | 301.12 | 117.63 | 45.11 | 17.51 |
Applications:
Our small PMDC motor, with a planetary gearhead, is widely applied to power tools, industrial valves and some other light manufacturing.
