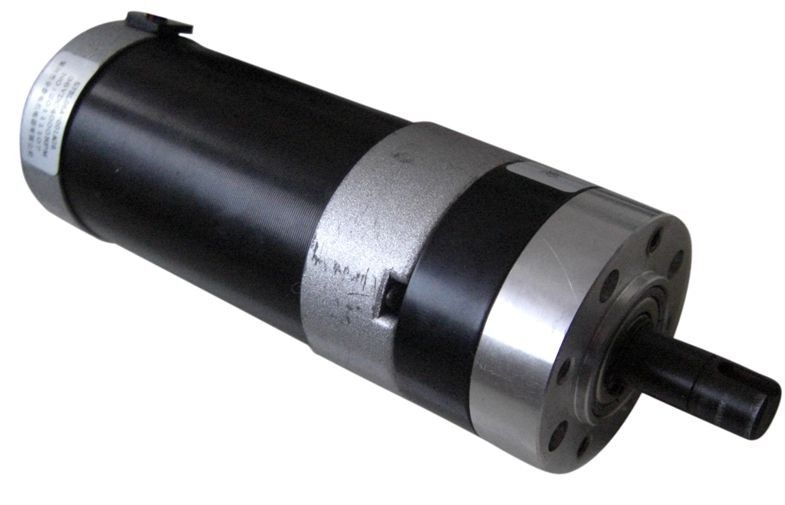

57BL-P DC Gear Motor
Features:
- 4-pole and 3 phase windings in Wye configuration.
- 12VDC or 24VDC as the nominal voltage.
- Well-known trademarks of rare earth magnets to improve the motor performances.
- Without any brushes to keep a longer servicing life while eliminating the rating of maintenance.
- A planetary gearhead, with 3 stages of gear reduction, is involved into to greatly increase the torque.
Specifications:
| Model | No. of Pole | No. of Phase | Rated Voltage (VDC) | Rated Speed (RPM) | Rated Torque (N.m) | Rated Current
(Amps) |
Output Power
(Watts) |
Motor Body Length L1(mm) | Weight
(Kg) |
| 57BL01PAG | 4 | 3 | 24 | 3000 | 0.057 | 1.5 | 18 | 41.5 | 0.43 |
| 57BL02PAG | 4 | 3 | 24 | 3000 | 0.11 | 2.5 | 34 | 46.5 | 0.5 |
| 57BL03PAG | 4 | 3 | 24 | 3000 | 0.165 | 3.2 | 52 | 56.5 | 0.67 |
| 57BL04PAG | 4 | 3 | 24 | 3000 | 0.22 | 4.5 | 69 | 66.5 | 0.75 |
| 57BL05PAG | 4 | 3 | 24 | 3000 | 0.33 | 6.7 | 103 | 86.5 | 1 |
| 57BL06PAG | 4 | 3 | 24 | 3000 | 0.44 | 8.8 | 138 | 103.5 | 1.25 |
| Gear ratio | 4 | 5 | 13 | 19 | 27 | 51 | 71 | 100 | 139 |
| NUMBER OF STAGE | 1 | 2 | 3 | ||||||
| MAX. ALLOWABLE TORQUE (N.m) | 2 | 2.5 | 3 | ||||||
| IINSTANT ALLOWABLE LOADING (N.m) | 4 | 5 | 6 | ||||||
| Length of gear box (mm) | 31 | 39 | 46.5 | ||||||

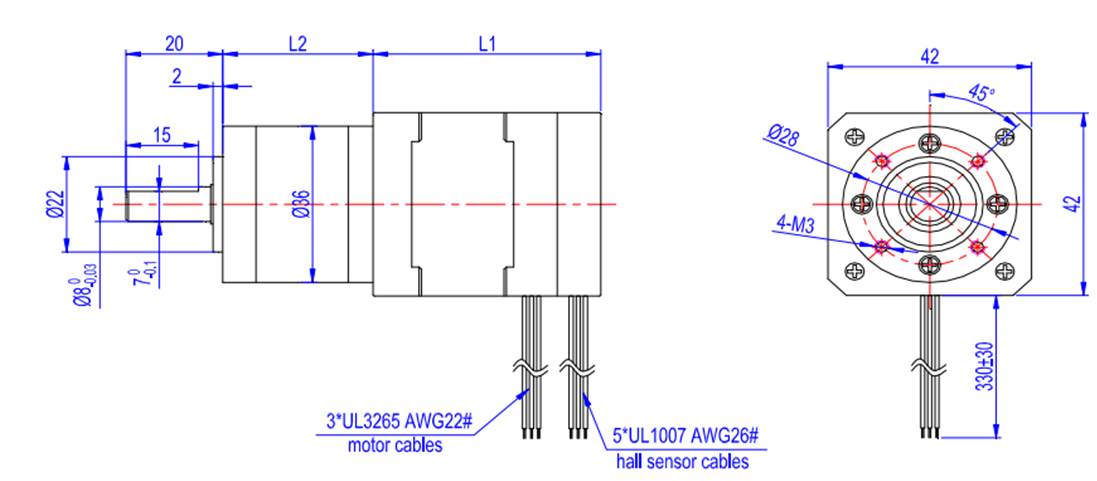

Dimensions:
(Unit=mm)
Applications:
Our bldc motor, with a planetary gearbox, is an ideal solution to the applications such as the pumps, material handling machines and textile machines.
