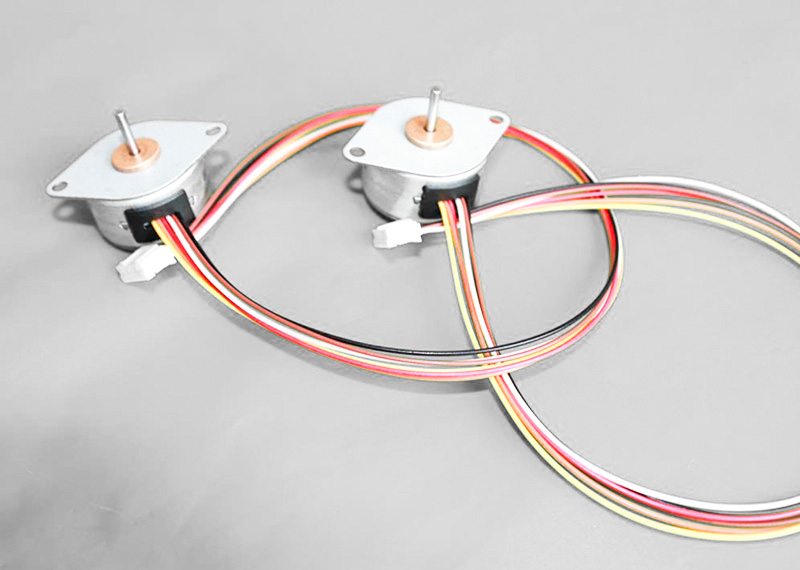

25BY48L PM Stepper Motor
High precision punched housing PM stepping motor 25mm , 4 phase stepper motor
| Certification: | TS-16949/RoHS/ISO14001 |
| Model Number: | 25BY48L |
Payment & Shipping Terms
| Minimum Order Quantity: | 1000pcs |
| Packaging Details: | Carton or negotiation |
| Delivery Time: | 45 working days after received your payment |
| Payment Terms: | negotiation, T/T |
| Supply Ability: | 150,000pcs/month |
Features
- Set up at 7.5° or 15° in step angle and the frame size is at 25mm.
- 2-phase or 4-phase windings to produce the holding torque varying from 80g.cm to 200g.cm.
- The PM stepper motor requires no “teeth” as are typically found in the variable reluctance (VR) stepper motor. This makes the PM stepper motor an extremely popular choice for many applications.
- Reliable performance with low current and low rotor inertia.
- Custom mounting plates and connectors or terminals are available to meet your OEM designs.
- An appropriate gear wheel can be introduced for some specific applications.
Specifications
| Model | Step Angle
( ° ) |
No. of Phase | Voltage
(VDC) |
Current
(A) |
Resistance
(Ω) |
Inductance
(mH) |
Holding Torque
(g.cm) |
Detent Torque
(g.cm) |
Rotor Inertia
(g/cm²) |
| 25BY24L01 | 15 | 4 | 9 | 0.45 | 20 | 14.3 | 150 | 75 | 1.0 |
| 25BY24L02 | 15 | 4 | 12 | 0.4 | 30 | 6 | 150 | 75 | 1.0 |
| 25BY2416 | 15 | 2 | 24 | 0.066 | 360 | 80 | 25 | 0.6 | |
| 25BY48L01 | 7.5. | 4 | 5 | 0.5 | 10 | 1.8 | 110 | 45 | 1.0 |
| 25BY48L029 | 7.5 | 4 | 24 | 0.4 | 60 | 11.6 | 200 | 50 | 1.0 |
| 25BY4803B | 7.5 | 4 | 12 | 0.25 | 50 | 10.5 | 160 | 35 | 1.0 |
| 25BY4809 | 7.5 | 4 | 20 | 0.43 | 50 | 12 | 155 | 45 | 1.0 |
| 25BY48Y-02 | 7.5 | 2 | 5 | 0.5 | 10 | 5.6 | 150 | 40 | 1.0 |
| EDM | 7.5 | 4 | 12 | 0.08 | 150 | 36 | 85 | 30 | 1.0 |
Dimensions (Unit=mm)
Applications
The 25BY48L PM stepper motors are widely applied to DVD/CD-ROM drivers, air swing for indoor unit of air conditioner and valves in household water/gas systems.
